2  Preliminary maps and research

2.1 Study area selection

The study areas were selected to make the comparison between Delft and Xi’an more balanced. Because the full cities are very different in size, both cases were analysed using the same 10 km by 10 km study-area extent. This allowed the project to compare two contrasting urban contexts without relying on full administrative boundaries.

For Delft, the selected area includes the city itself and parts of the surrounding urban and rural landscape. For Xi’an, the selected area focuses on a central urban section that includes dense urban fabric, green patches, and major open spaces. The aim was not to make the two cities identical, but to apply the same spatial logic to two different urban settings.

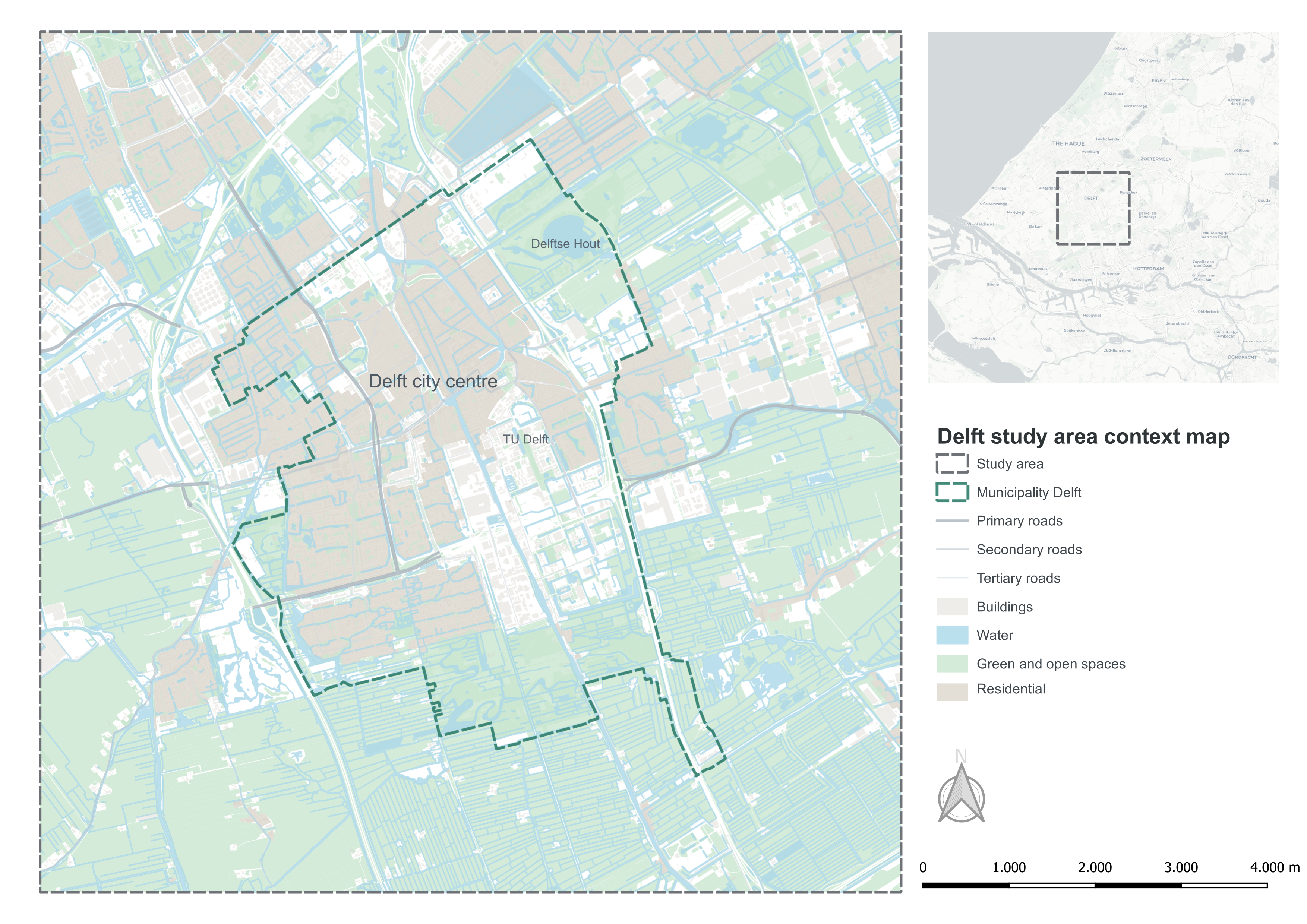

Figure 2.1: Study area context map for Delft.

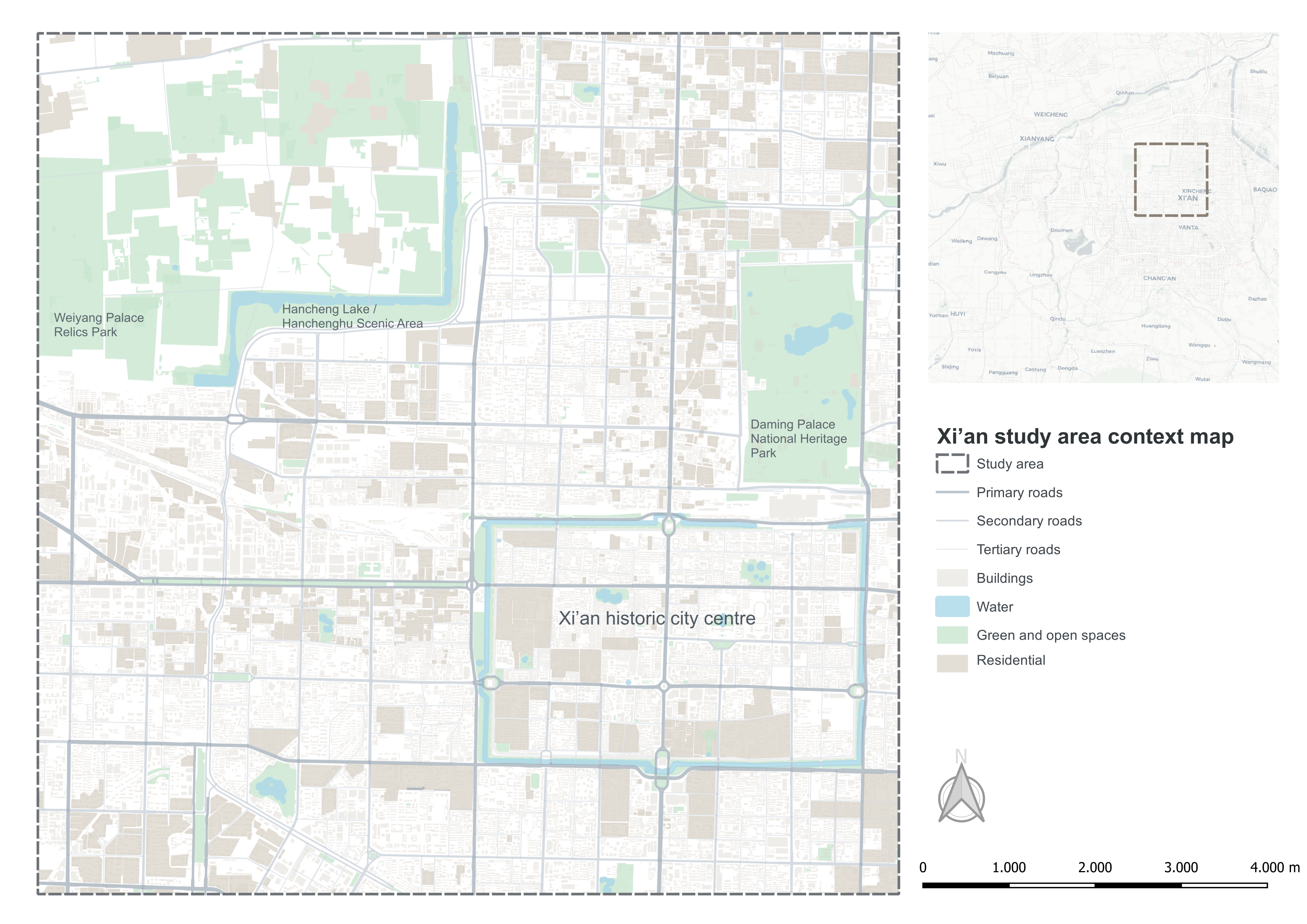

Figure 2.2: Study area context map for Xi’an.

The maps above show the selected study areas in their wider urban context. They also show that the comparison is based on equally sized areas, rather than on the full administrative extent of both cities.

2.2 Delft and Xi’an as comparison cases

Delft and Xi’an represent clearly different urban contexts. Delft is a smaller Dutch city in a low lying delta setting with a dense water network and a highly managed urban landscape. Xi’an is a much larger Chinese city with a different urban structure, land cover pattern, and topographic setting.

For Delft, the 10 km by 10 km study area fully contains the city. This is useful because Delft is relatively compact, so the selected area includes both the municipality and the surrounding landscape. The municipality boundary is shown inside the study area to make clear where Delft itself is located. This also gives context for surrounding canals, green areas, urban edges, and open landscapes, which are relevant for understanding green space configuration and flood related surface water patterns.

For Xi’an, the same 10 km by 10 km study area does not cover the full city. Instead, it captures a central urban subset. This area was selected because it includes the historic city centre and city wall, but also large green and heritage spaces such as Weiyang Palace Relics Park, Hancheng Lake, and Daming Palace National Heritage Park. This makes the area useful for comparing dense urban fabric with larger green and open spaces within the same study area size.

The comparison is therefore not based on the idea that Delft and Xi’an are similar cities. Instead, they are used as contrasting cases. This makes it possible to test whether the same spatial workflow can still identify meaningful green space and flood related patterns in both places.

Brom, Peta, Kristine Engemann, Christina Breed, Maya Pasgaard, Titilope Onaolapo, and Jens-Christian Svenning. 2023. “A Decision Support Tool for Green Infrastructure Planning in the Face of Rapid Urbanization.” Land 12 (2): 415. https://doi.org/10.3390/land12020415.

Farhadi, Hadi, Hamid Ebadi, Abbas Kiani, and Ali Asgary. 2024. “A Novel Flood/Water Extraction Index (FWEI) for Identifying Water and Flooded Areas Using Sentinel-2 Visible and Near-Infrared Spectral Bands.” Stochastic Environmental Research and Risk Assessment 38: 1873–95. https://doi.org/10.1007/s00477-024-02660-z.

Meerow, Sara. 2019. “A Green Infrastructure Spatial Planning Model for Evaluating Ecosystem Service Tradeoffs and Synergies Across Three Coastal Megacities.” Environmental Research Letters 14 (12): 125011. https://doi.org/10.1088/1748-9326/ab502c.

Prokić, Marija, Stevan Savić, and Dragoslav Pavić. 2019. “Pluvial Flooding in Urban Areas Across the European Continent.” Geographica Pannonica 23 (4): 216–32. https://doi.org/10.5937/gp23-23508.

Sarabi, Shahryar, Qi Han, Bauke de Vries, and A. Georges L. Romme. 2022. “The Nature-Based Solutions Planning Support System: A Playground for Site and Solution Prioritization.” Sustainable Cities and Society 78: 103608. https://doi.org/10.1016/j.scs.2021.103608.

Shi, Qian, Mengxi Liu, Andrea Marinoni, and Xiaoping Liu. 2023. “UGS-1m: Fine-Grained Urban Green Space Mapping of 31 Major Cities in China Based on the Deep Learning Framework.” Earth System Science Data 15: 555–77. https://doi.org/10.5194/essd-15-555-2023.
